Block coding¶

piBo Maker uses Blockly for block coding. Besides the standard blocks there are piBo blocks that call the openpibo Python package. The [Python code] button shows the Python code your blocks make.

Note

This page is generated from the IDE toolbox (docs/tools/gen_block_guide.py). Each picture shows the block as it comes out of the toolbox. Everything runs inside piBo. Only the [Collect] category needs the internet, and it is only in the Korean edition.

Categories¶

Standard Blockly blocks (hover over a block to see what it does)
├── Logic (7)
├── Loops (5)
├── Math (13)
├── Text (15)
├── Lists (12)
├── Colour (4)
├── Variables (appear when you make one)
└── Functions (appear when you make one)

piBo blocks
├── Start (1)
├── Audio (4)
├── Collect (4)
├── Device (8)
├── Motion (10)
├── Oled (11)
├── Speech (8)
├── Vision (16)
├── Rec (36)
└── Utils (12)

piBo blocks¶

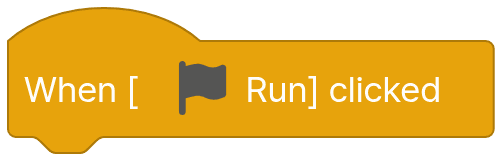

Start¶

Run the code.

Audio¶

Select and play audio at set volume.

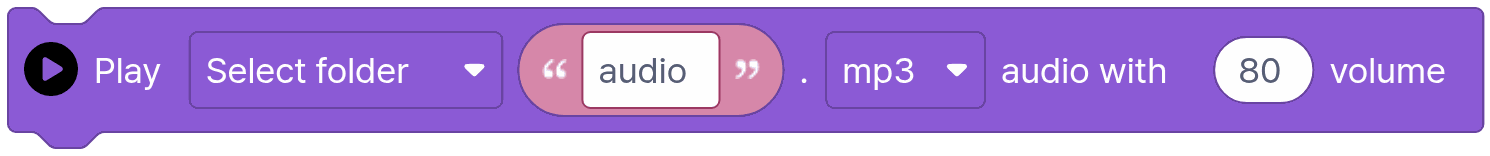

Play [Select folder ▾] ([audio]) . [mp3 ▾] audio with ([80]) volume

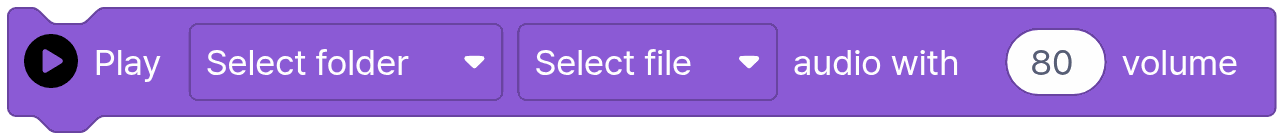

Enter music file name to play.

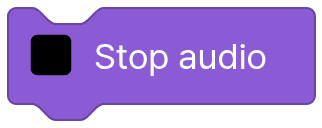

Stop the audio currently playing.

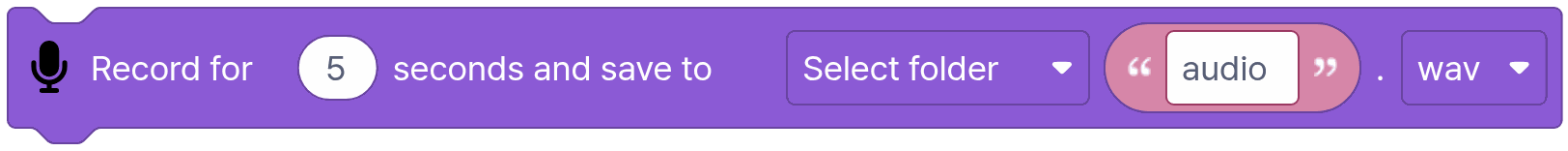

Record for ([5]) seconds and save to [Select folder ▾] ([audio]) . [wav ▾]

Record for a set time and save as a file.

Collect¶

Note

Korean edition only (Korean weather regions and a Korean news feed). The Global edition does not have this category.

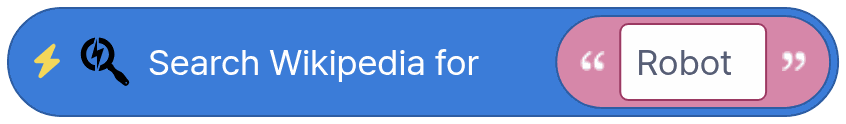

(Internet!) Search Wikipedia with the given keyword. returns a value

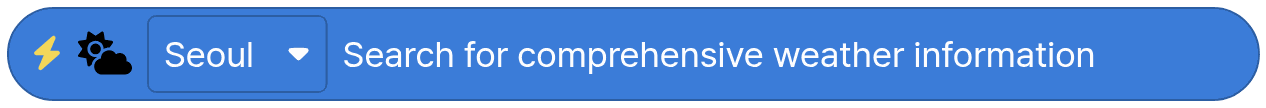

[Seoul ▾] Search for comprehensive weather information

(Internet!) Search for comprehensive weather information in a specific area. returns a value

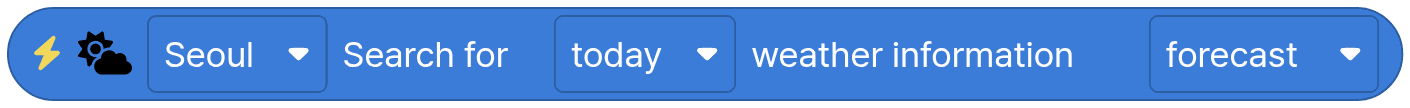

[Seoul ▾] Search for [today ▾] weather information [forecast ▾]

(Internet!) Search for weather information in a specific area. returns a value

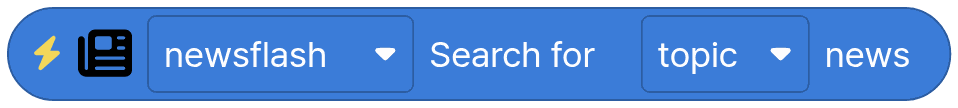

(Internet!) Retrieve search results with news keywords. returns a value

Device¶

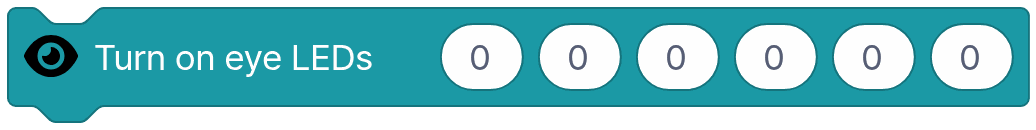

Turn on eye LED

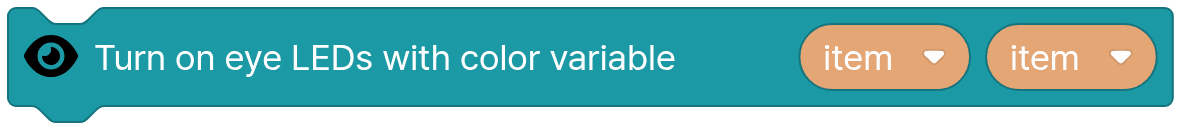

Turn on eye LED with a color variable.

Check adapter connection status. returns a value

Check battery status. returns a value

Check system messages. returns a value

Detect presence of people. returns a value

Detect touch. returns a value

Check button status. returns a value

Motion¶

Retrieve list of available motions. returns a value

Retrieve list of custom motions. returns a value

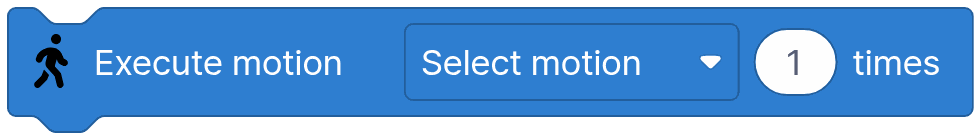

Execute motion [Select motion ▾] ([1]) times

Execute a chosen motion a specified number of times.

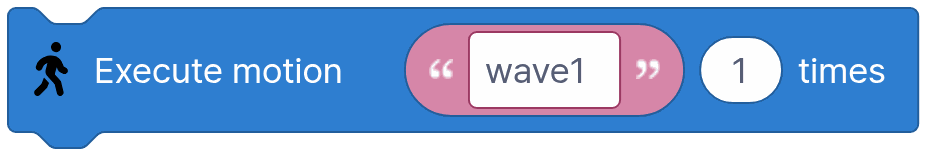

Execute an entered motion a specified number of times.

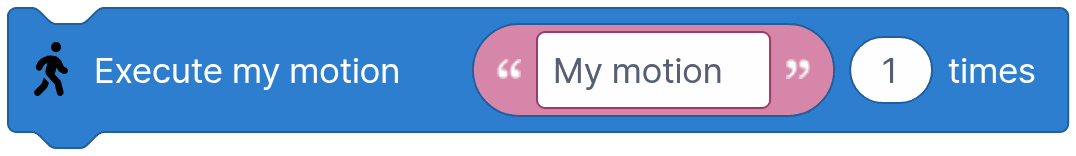

Execute my motion ([My motion]) ([1]) times

Execute a custom motion.

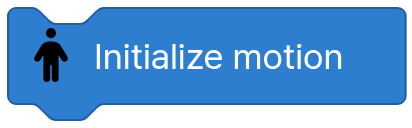

Initialize motion settings.

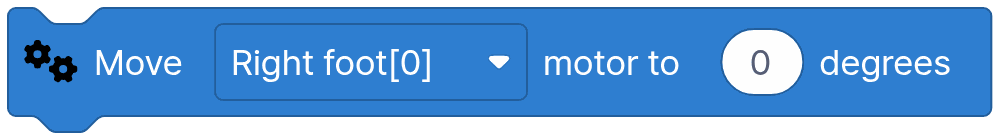

Move [Right foot[0] ▾] motor to ([0]) degrees

Move a specified motor to a certain degrees.

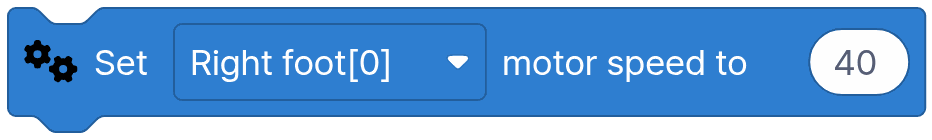

Set [Right foot[0] ▾] motor speed to ([40])

Set the speed of the motor.

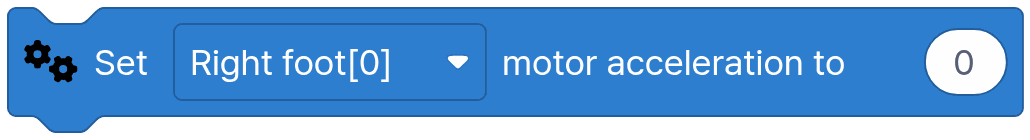

Set [Right foot[0] ▾] motor acceleration to ([0])

Set the acceleration of the motor.

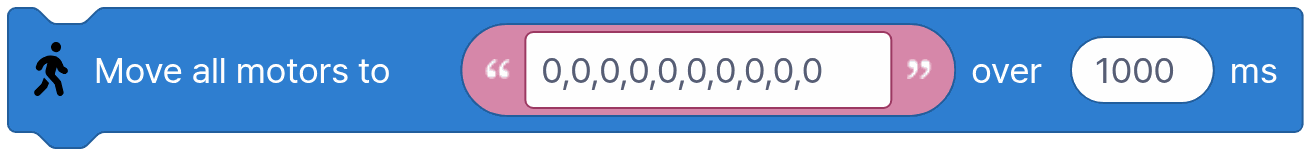

Move all motors to ([0,0,0,0,0,0,0,0,0,0]) over ([1000]) ms

Moves all motors to a certain degrees by the specified time.

Oled¶

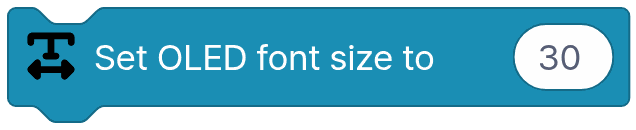

Set the font size on the OLED display.

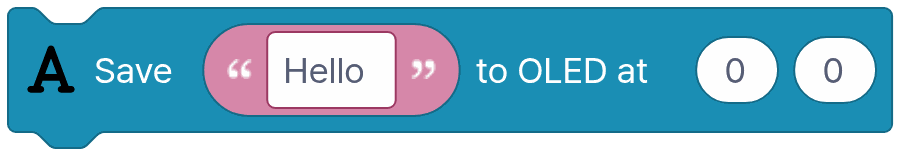

Display text on the OLED screen.

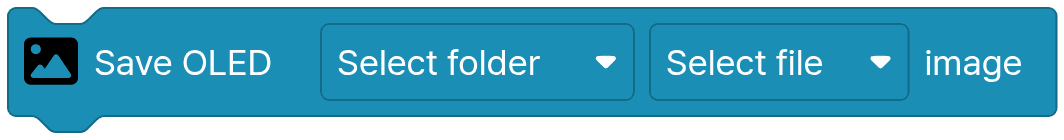

Save OLED [Select folder ▾] [Select file ▾] image

Display dynamically selected image on OLED.

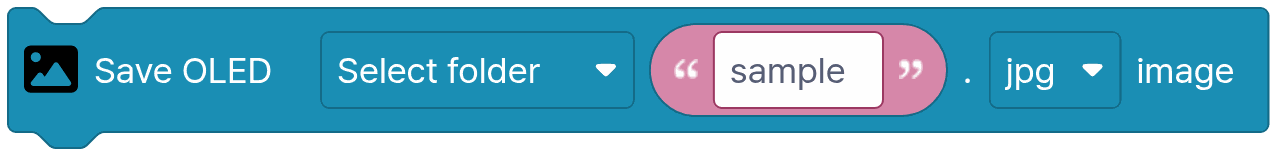

Save OLED [Select folder ▾] ([sample]) . [jpg ▾] image

Display a specified image on OLED.

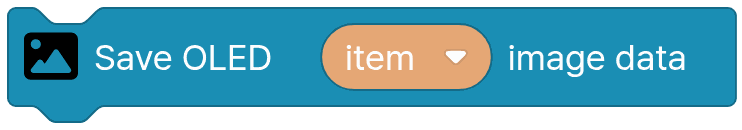

Display a specified image data on OLED.

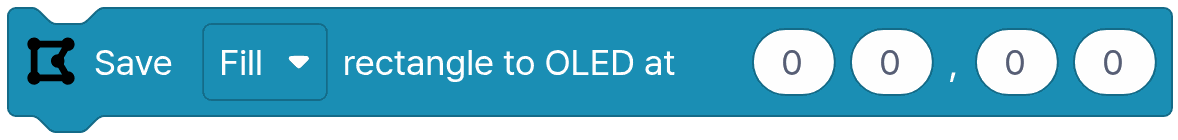

Save [Fill ▾] rectangle to OLED at ([0]) ([0]) , ([0]) ([0])

Draw a rectangle on OLED.

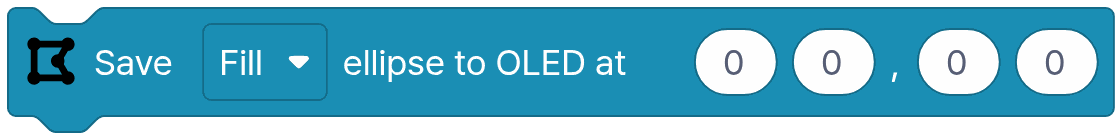

Save [Fill ▾] ellipse to OLED at ([0]) ([0]) , ([0]) ([0])

Draw an ellipse on OLED.

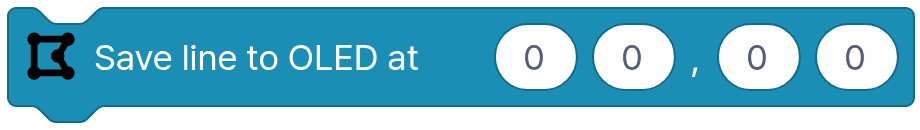

Save line to OLED at ([0]) ([0]) , ([0]) ([0])

Draw a line on OLED.

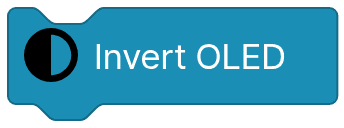

Invert colors on the OLED screen.

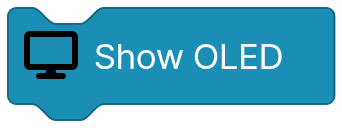

Display content on OLED screen.

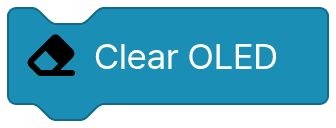

Clear the OLED screen.

Speech¶

Listen for up to ([5]) seconds and convert to text

Listen with the robot microphone and turn speech into text when you stop talking. Runs on the robot; Korean and English are detected automatically. The first call takes a few extra seconds to get ready. returns a value

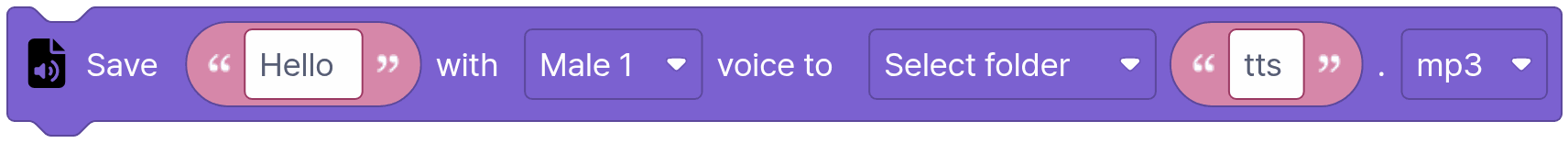

Save ([Hello]) with [Male 1 ▾] voice to [Select folder ▾] ([tts]) . [mp3 ▾]

Make speech on the robot and save it to a file. Korean and English are detected automatically.

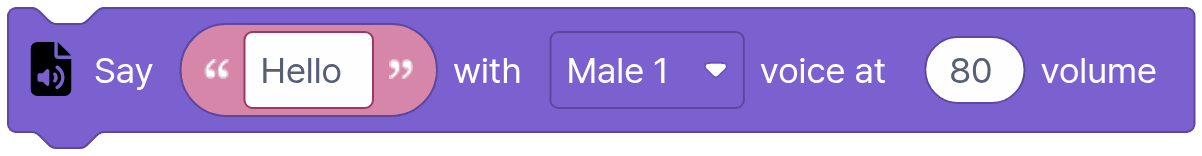

Say ([Hello]) with [Male 1 ▾] voice at ([80]) volume

Make speech on the robot and say it. Korean and English are detected automatically.

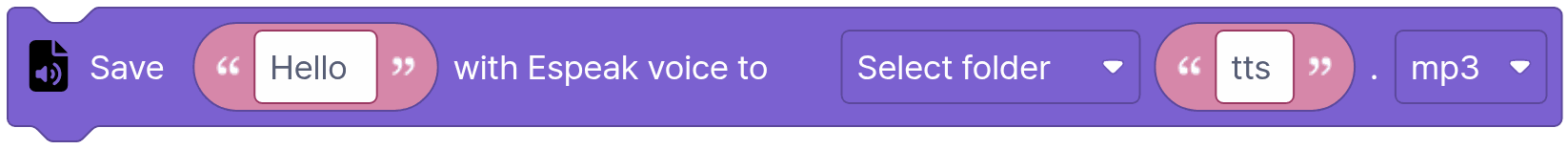

Save ([Hello]) with Espeak voice to [Select folder ▾] ([tts]) . [mp3 ▾]

Save text as espeak robot voice to a file.

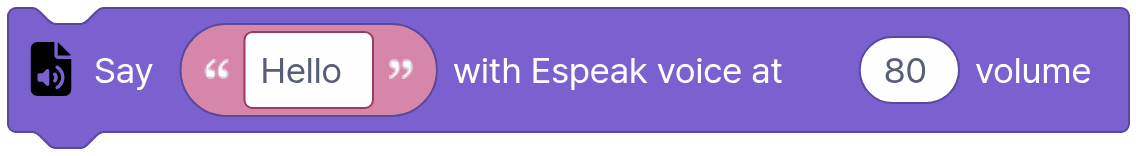

Say ([Hello]) with Espeak voice at ([80]) volume

Say text with the espeak robot voice.

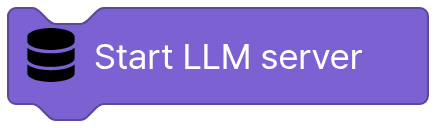

Start LLM server.

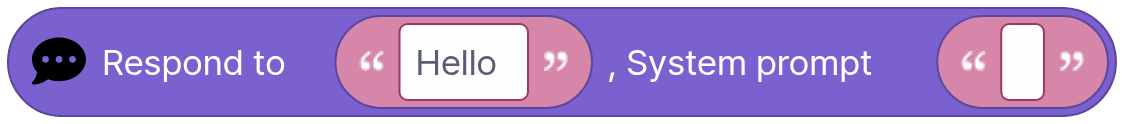

Respond to ([Hello]) , System prompt (값)

Send text to the LLM server and get a reply. The system prompt sets how piBo should answer. returns a value

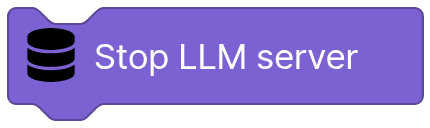

Stop the LLM server.

Vision¶

Capture an image. returns a value

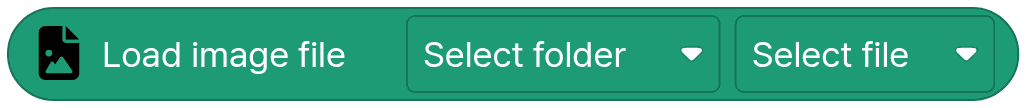

Load image file [Select folder ▾] [Select file ▾]

Load a specified image file. returns a value

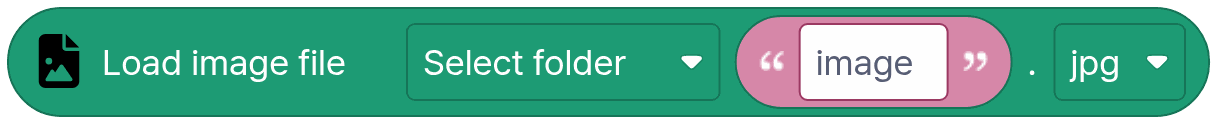

Load image file [Select folder ▾] ([image]) . [jpg ▾]

Load an image file. returns a value

Create a blank image filled with the chosen color. returns a value

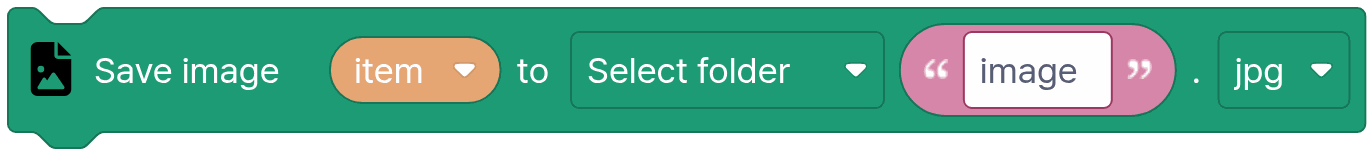

Save image ([item ▾]) to [Select folder ▾] ([image]) . [jpg ▾]

Save as an image file.

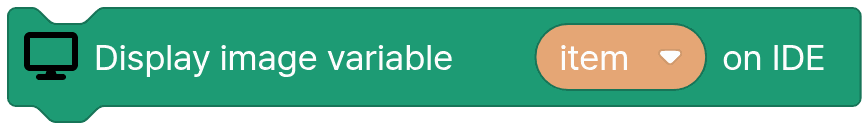

Display image variable ([item ▾]) on IDE

Display an image variable in IDE.

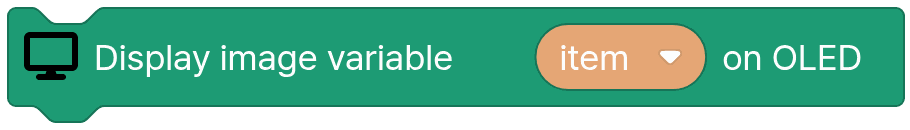

Display image variable ([item ▾]) on OLED

Display an image variable in OLED.

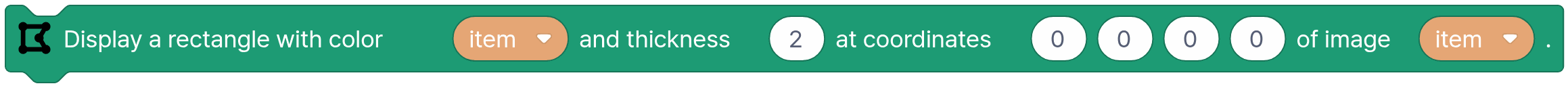

Display a rectangle with color ([item ▾]) and thickness ([2]) at coordinates ([0]) ([0]) ([0]) ([0]) of image ([item ▾]) .

Draws a rectangle on the image.

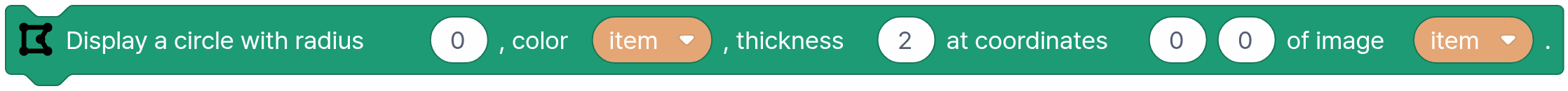

Display a circle with radius ([0]) , color ([item ▾]) , thickness ([2]) at coordinates ([0]) ([0]) of image ([item ▾]) .

Displays a circle in the image.

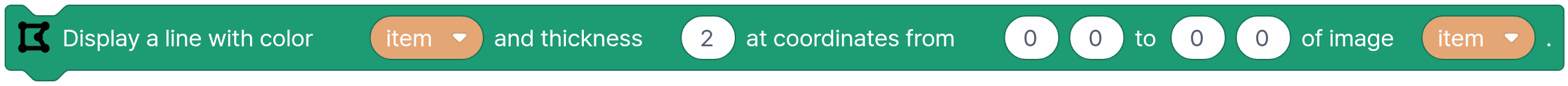

Display a line with color ([item ▾]) and thickness ([2]) at coordinates from ([0]) ([0]) to ([0]) ([0]) of image ([item ▾]) .

Displays a line in the image.

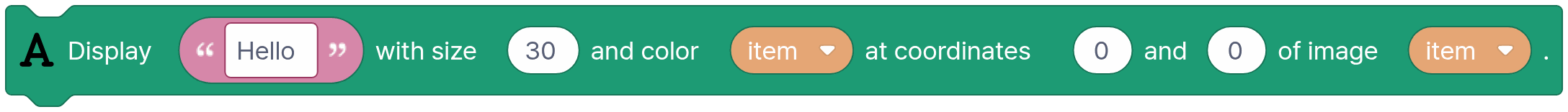

Display ([Hello]) with size ([30]) and color ([item ▾]) at coordinates ([0]) and ([0]) of image ([item ▾]) .

Display text on the image.

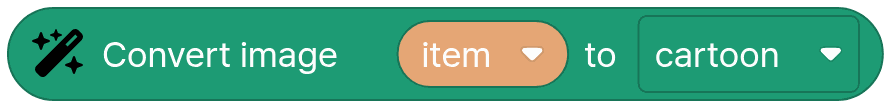

Transform image style. returns a value

image ([item ▾]) resize to width ([100]) height ([100])

Resize the image. returns a value

Turns the 6×8 picture you draw by tapping dots into an image (scaled to the camera size). returns a value

Turns the 8×4 picture you draw by tapping dots into an image (scaled to the camera size). returns a value

Turns the 8×8 picture you draw by tapping dots into an image (scaled to the camera size). returns a value

Rec¶

Detect and identify faces in the specified image. returns a value

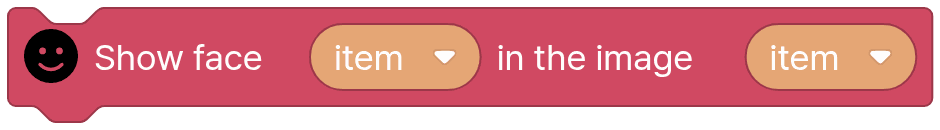

Show face ([item ▾]) in the image ([item ▾])

Show faces in the image.

Analyze face ([item ▾]) of image ([item ▾]) (age, gender, emotion)

Analyze face in image(age, gender, emotion) returns a value

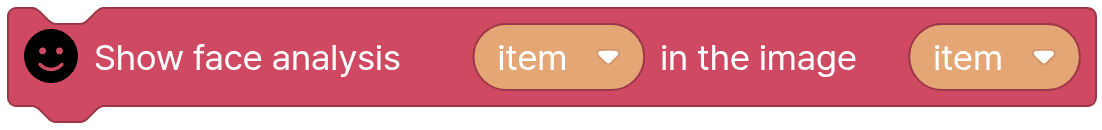

Show face analysis ([item ▾]) in the image ([item ▾])

Show face analysis in the image

Find face ([item ▾]) landmark in the image ([item ▾])

Find face landmark in the image returns a value

Show face landmark ([item ▾]) in the image ([item ▾])

Show face landmark in the image.

Get the list of names in the face dictionary. returns a value

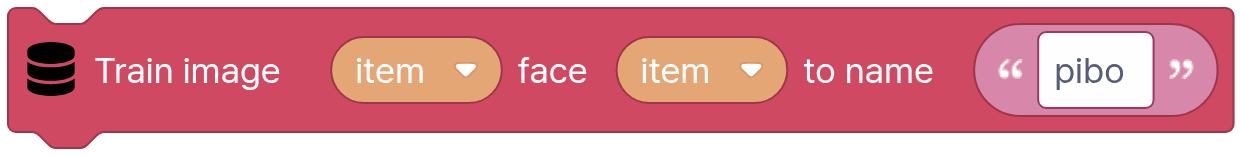

Train image ([item ▾]) face ([item ▾]) to name ([pibo])

Train face from image.

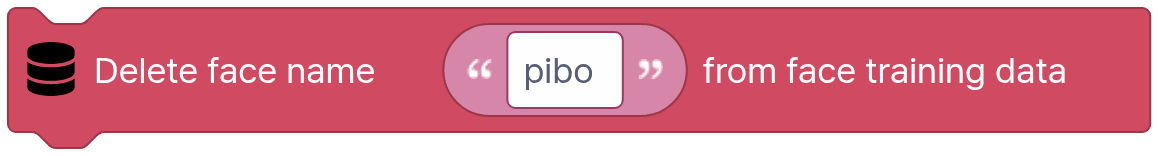

Delete face name ([pibo]) from face training data

Delete a specific face from training faces.

Recognize who is image ([item ▾]) face ([item ▾])

Recognize who faces are in an image. returns a value

Save face training data to file.

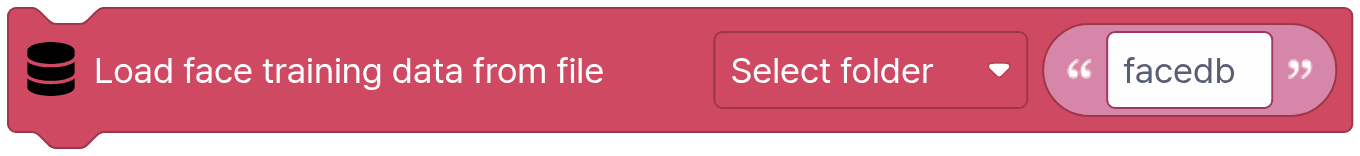

Load face training data from file.

Analyze face direction/distance in the image ([item ▾])

Analyze face direction/distance in the image. returns a value

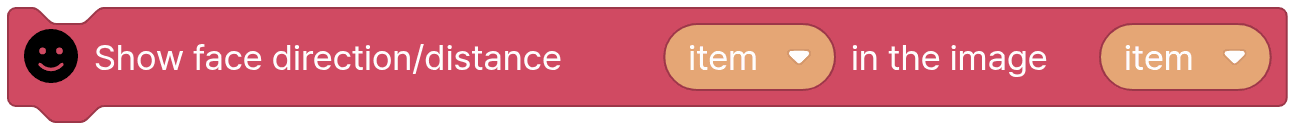

Show face direction/distance ([item ▾]) in the image ([item ▾])

Show face direction/distance in the image

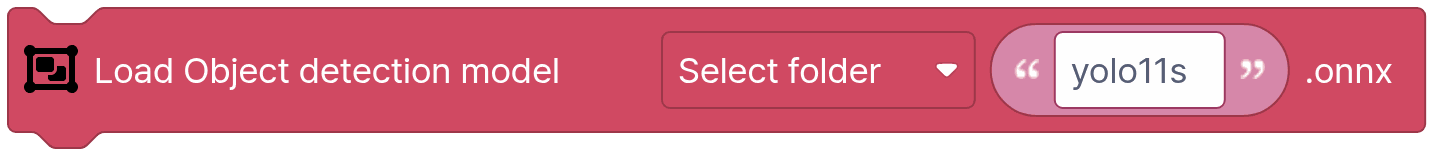

Load Object detection model

Find objects in the image. returns a value

Find objects in the image ([item ▾]) (Raw)

Find objects in the image. (RAW) returns a value

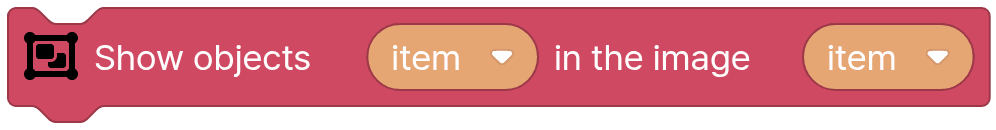

Show objects ([item ▾]) in the image ([item ▾])

Show objects in the image.

Find QR in the image. returns a value

Find QR in the image. (RAW) returns a value

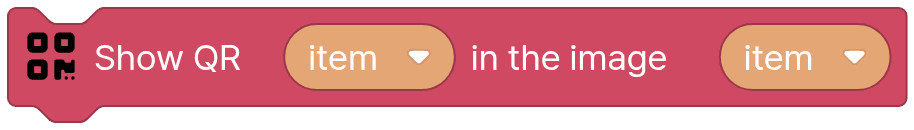

Show QR ([item ▾]) in the image ([item ▾])

Show QR codes in the image.

Identify and analyze human poses in the specified image. returns a value

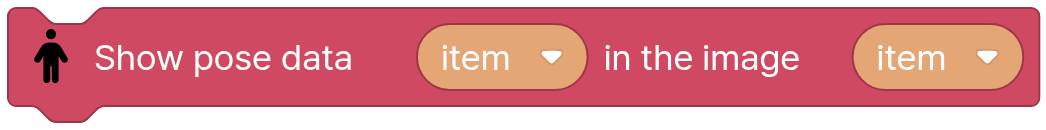

Show pose data ([item ▾]) in the image ([item ▾])

Show pose data in the image.

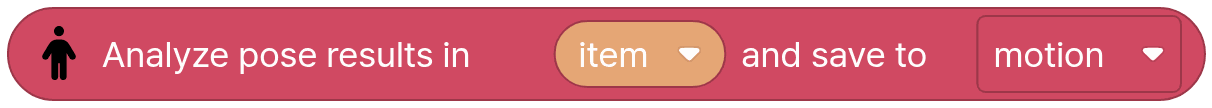

Analyze pose results in ([item ▾]) and save to [motion ▾]

Evaluate and interpret pose data from the image and save the results. returns a value

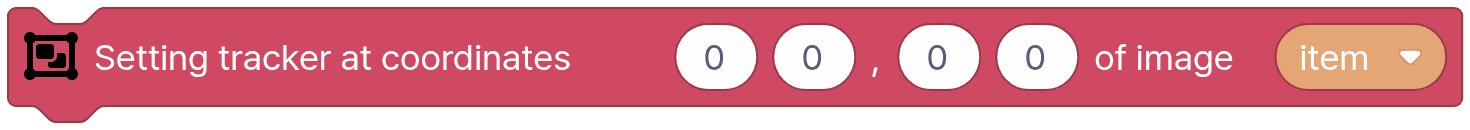

Setting tracker at coordinates ([0]) ([0]) , ([0]) ([0]) of image ([item ▾])

Set a tracker for a specific location in the image.

Track thing in the image. returns a value

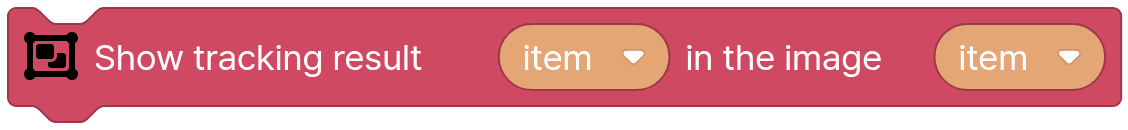

Show tracking result ([item ▾]) in the image ([item ▾])

Show tracking result in the image.

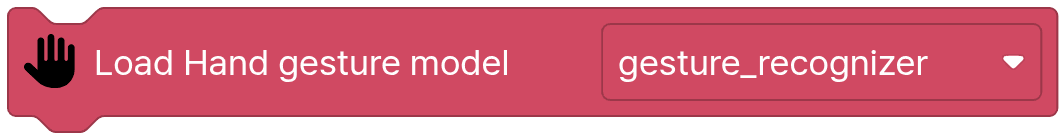

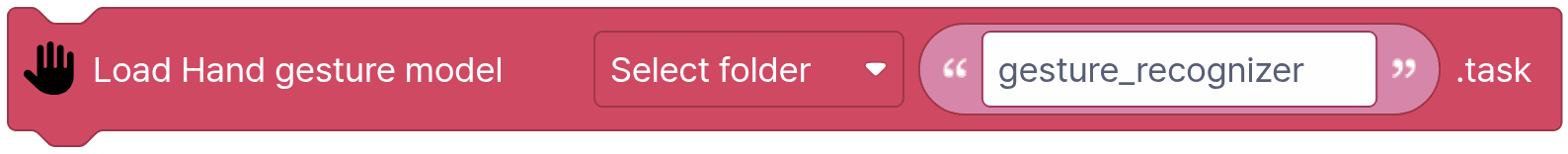

Load Hand gesture model.

Load Hand gesture model

Recognize Hand gesture in the image ([item ▾])

Recognize Hand gesture in the image. returns a value

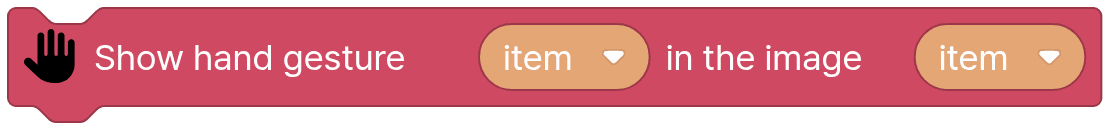

Show hand gesture ([item ▾]) in the image ([item ▾])

Show hand gesture in the image.

Detect Marker length ([5]) in image ([item ▾])

Detect Marker in the specified image. returns a value

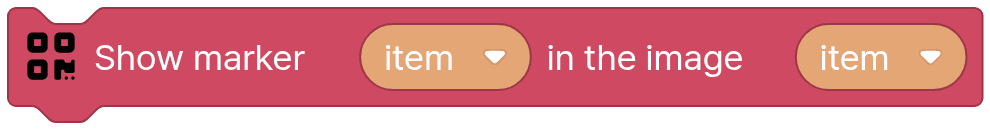

Show marker ([item ▾]) in the image ([item ▾])

Show marker in the image.

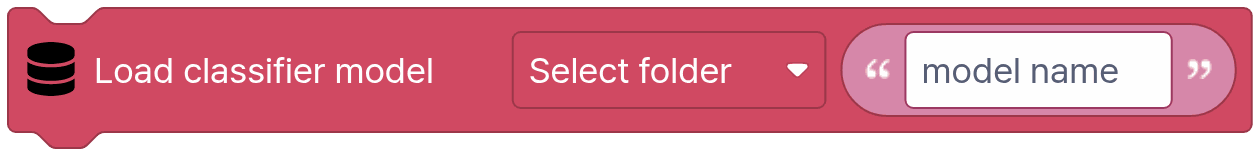

Load classifier model [Select folder ▾] ([model name])

Load a model you taught and saved in the Classifier. Folder mymodel, then the model name. (image, hand, face, pose)

Classify ([item ▾]) with classifier model

Classify the image with the loaded classifier model and return the best matching name. Hand, face and pose models return empty text when no hand, face or body is in view. returns a value

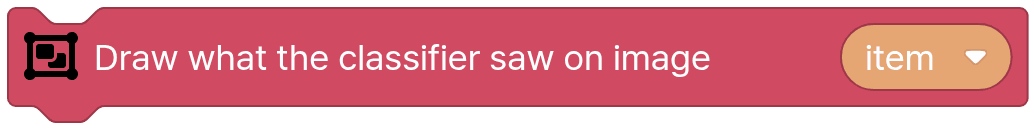

Draw what the classifier saw on image ([item ▾])

Draws what the last [Classify with classifier model] saw on that image: points and bones for hand and pose, points for face, plus the class name and probability.

Utils¶

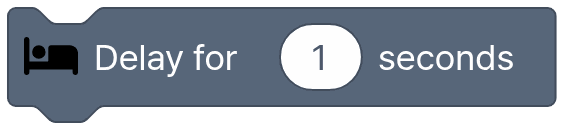

Pause the process for a specified duration of seconds.

Retrieve the current time value. returns a value

Obtain the current time. returns a value

Verify if an element is included in a list or array. returns a value

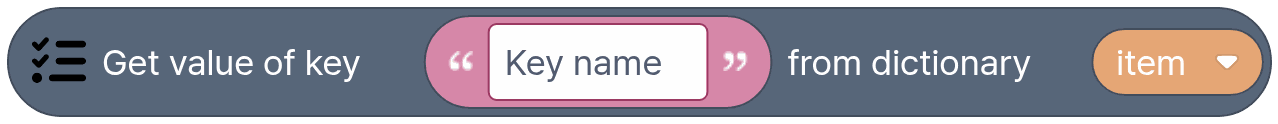

Get value of key ([Key name]) from dictionary ([item ▾])

Retrieve the value associated with a specific key in a dictionary. returns a value

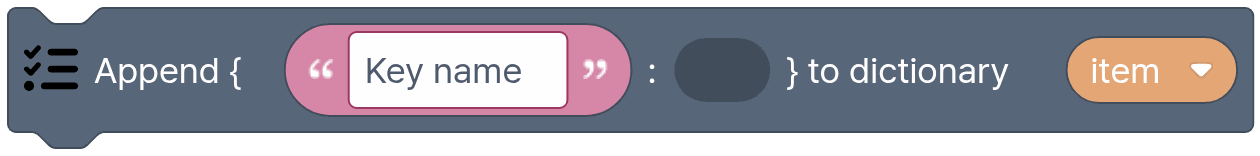

Append { ([Key name]) : ( ) } to dictionary ([item ▾])

Add a new key-value pair to an existing dictionary.

Generate a new empty dictionary. returns a value

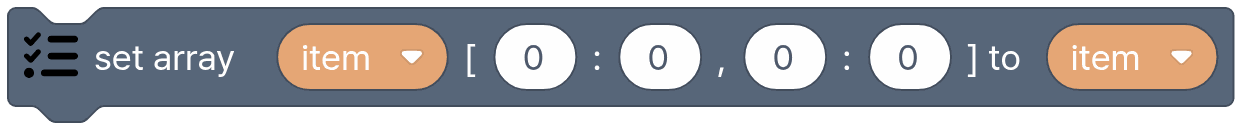

set array ([item ▾]) [ ([0]) : ([0]) , ([0]) : ([0]) ] to ([item ▾])

Set the values of the specified range in the array.

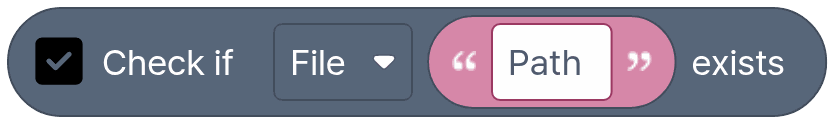

Confirm the existence of a file or directory. returns a value

Change a variable’s type to String. returns a value

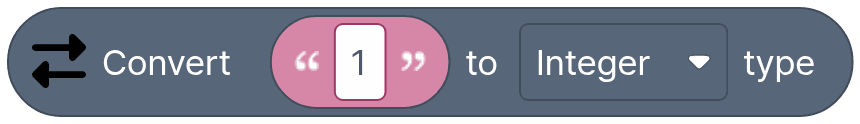

Convert a variable to a specific numeric type. (Integer or Float) returns a value

Get angle of ([item ▾]) - ([item ▾]) - ([item ▾])

Get angle returns a value
