Hardware

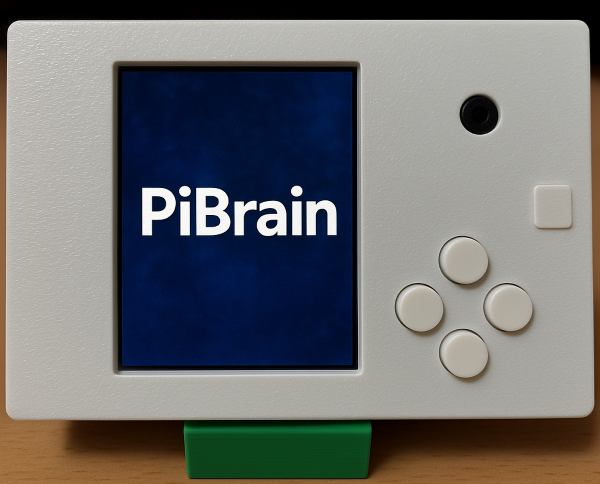

Details of the parts of PiBrain.

• Camera

  • A camera compatible with the Raspberry Pi Camera v1.3.

  • Takes 5-megapixel pictures.

• Buttons

  • Tact switches, non-locking type

  • 4 buttons are connected.

• LCD

  • 2.4-inch LCD, 240 x 320 resolution

  • Connected over SPI.

• LED

  • Uses WS281x Neopixel LEDs.

• Audio

  • Built-in I2S amplifier.

  • Built-in 1 W speaker.

• Main controller

  • Uses a Raspberry Pi.
